Features
• User-friendly ‘soft-touch’ LED control membrane control panel.
• Enclosed design with a turn limiter ensures the highest level of safety.
• The top cover can be opened for easy access to hardware during maintenance.
• Parallel and smooth width adjustment(lead screw)
• Steady and precise lifting(retractable motor).
• Minimize transmission clearance between the conveyor.
• Different sizes available upon request.
• SMEMA compatible.
Technical parameters

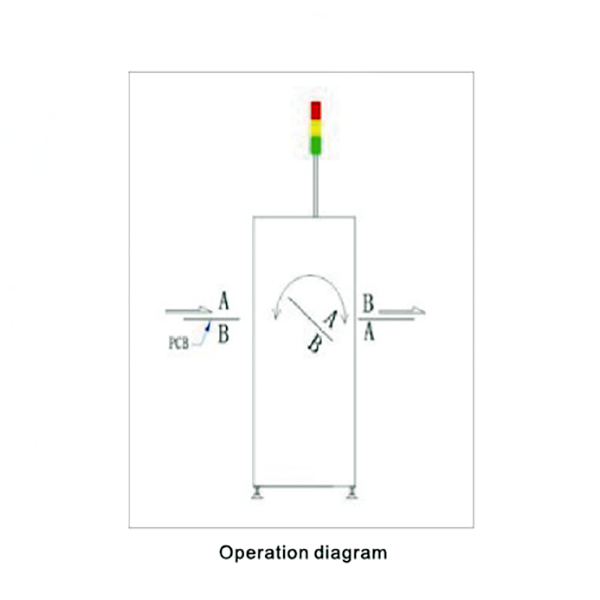

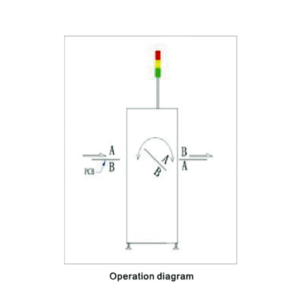

| Usage | This unit is used to invert PCBs (180°) for the double-sided process |
| Cycle Time | Approx. 10 seconds |
| Belt Type | Flat belt |
| Power Supply | AC 110V / 220V |
| Power | Max 150W |
| Air Pressure | 4–6 bar |
| Transport Height | 900 ± 20 mm (or customized) |
| Transport Direction | From left to right or right to left |
Specifications
| Model | Dimension (L*W*H MM) | PCB Size (MM) | Weight (KG) |
| B1-350W-TN | 500*725*1250 | 50*50-445*350 | 120 |
| B1-460W-TN | 600*856*1250 | 50*50-550*460 | 160 |
