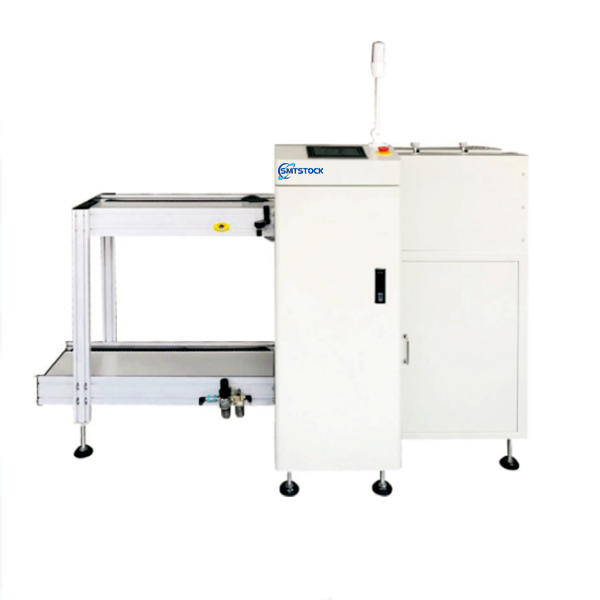

Features
• User-friendly membrane control panel.
• Increase the board without interference.
• By-pass mode provided.
• Top & bottom pneumatic clamps to secure the magazine rack.
• No PCB breakage guarantee because of the special gas circuit design.
• The Vacuum Loader and pallet conveyor are compatible.
• SMEMA compatible.
Technical parameters

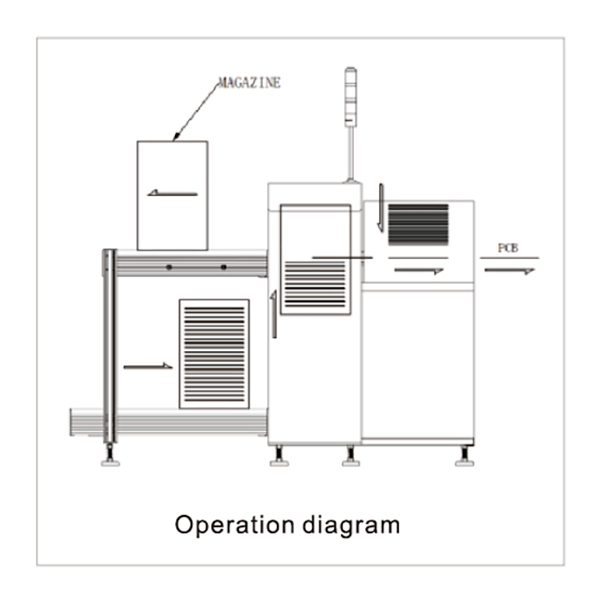

| Usage | This unit is used for the automatic loading operation of double-sided boards and transceiver boards |
| No. of Magazine | Upper conveyor: 1 magazine; Lower conveyor: 2 magazines |
| Indexing Pitch | 10, 20, 30, 40 mm or specify |
| Maximum PCB Capacity | 400 pcs (0.6 mm thick PCB) |
| Cycle Time | Approx. 12 seconds or specify |
| Power Supply | AC110V / 220V |
| Power | Max 300W |
| Air Pressure | 4–6 bar |
| Transport Height | 900 ± 20 mm (or customized) |
| Transport Direction | From left to right or right to left |
Specifications
| Model | Dimension (L*W*H(mm) | PCB Size (mm) | Magazine Size (L*W*H mm) | Weight (kg) |
| LC-M-TN | 1850*855*1250 | 50*80-330*250 | 355*320*563 | 190 |
| LC-L-TN | 2185*935*1250 | 50*80-445*330 | 460*400*563 | 220 |
| LC-LL-TN | 2320*994*1250 | 50*80-460*390 | 535*460*563 | 260 |
