Features
- Modular design
- Weighted design improves stability
- Inspection mode and automatic mode
- Inducing multi-zone position accuracy.
- Ergonomic design makes the arms rest.
- Custom machine length according to the customer’s requirement.
- Order the number of multi-zone upon request
- Variable speed control.
- Compatible SMEMA interface.
Technical Parameters

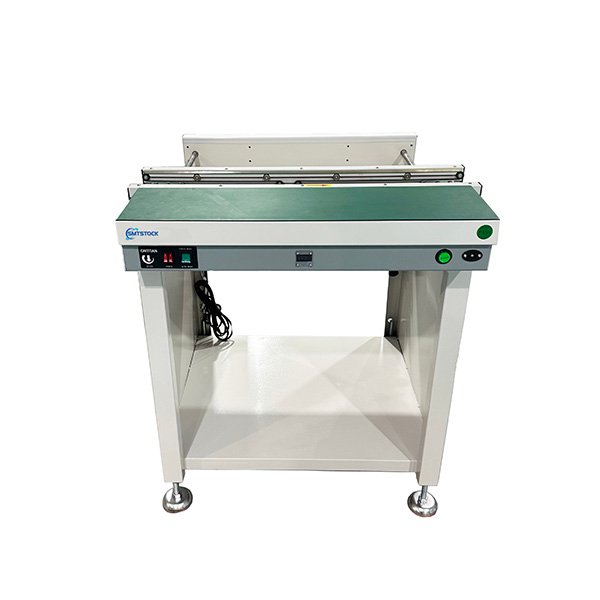

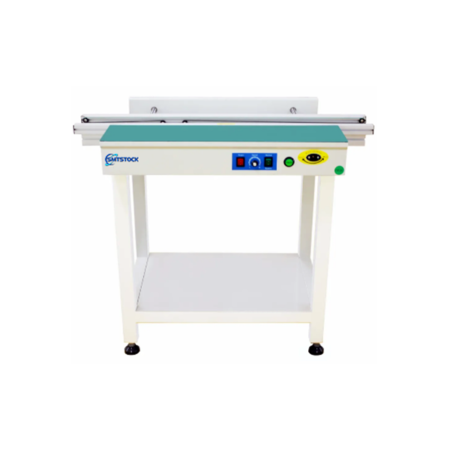

| Description | PCB conveyor is used to link two machines in the SMT production line |
| Belt type | Flat belt |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC110V/220V |
| Power | Max 100W |
| Transport height | 900±20mm (Or customized) |

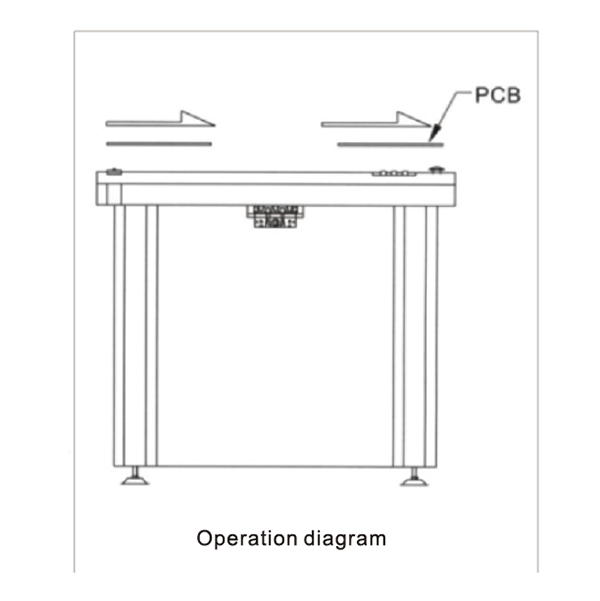

| Transport direction | From left to right or right to left |
Specifications
| Model | PCB size (MM) | Weight (KG) | Dimension (L*W*H MM) |
| BC-050M-N | 50*50-445*350 | 50 | 500*676*900 |
| BC-060M-N | 50*50-545*350 | 50 | 600*676*900 |
| BC-080M-N | 50*50-745*350 | 50 | 800*676*900 |
| BC-100M-N | 50*50-945*350 | 60 | 1000*676*900 |
