Features
-
Lead-free design ensures environmental compliance with RoHS standards.
-
Stable multi-zone temperature control for precise soldering results.
-
High-efficiency hot air circulation for uniform heating across PCBs.
-
Adjustable conveyor speed to fit various SMT production requirements.
-
SMEMA interface compatible for seamless integration with SMT lines.
-
Easy-to-maintain design with user-friendly control interface.
Technical parameters
| Item | KEA-800 | KEA-1000 | KEA-800D | KEA-1000D |
| Number of heating zones | Top 8 / Bottom 8 | Top 10 / Bottom 10 | Top 8 / Bottom 8 | Top 10 / Bottom 10 |
| Length of heating zone | 3110 mm | 3892 mm | 3110 mm | 3892 mm |
| Number of cooling zones | Up 2 (Cool air circulation) | |||
| Exhaust volume | 10 m³/min x 2 (Single lane) | |||
| Max. width of PCB | 400 mm (Optional: 450 mm) | |||
| Conveyor direction | L→R (Optional: R→L) | |||

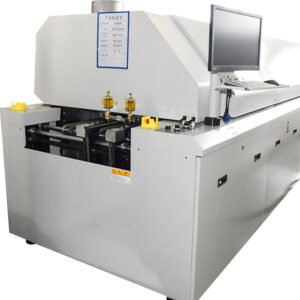

| Fixed rail side | Front fixed (Option: rear fixed) | Front fixed (Option: rear fixed) | Front & rear fixed, 2 central adjustable | Front & rear fixed, 2 central adjustable |
| Conveyor height | 900 ± 20 mm | 900 ± 20 mm | 900 ± 20 mm | 900 ± 20 mm |

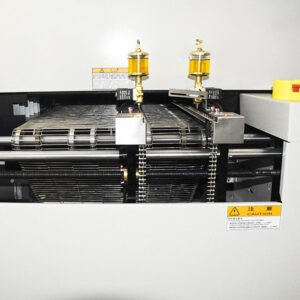

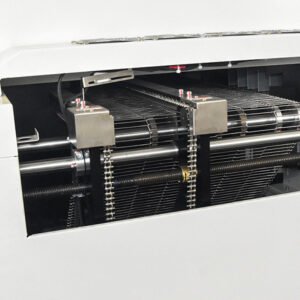

| PCB transmission | Chain + Mesh (Option: chain + central support) | |||
| PCB top height | Top 30 mm / Bottom 25 mm | |||
| Conveyor speed | 300–2000 mm/min | |||
| Power supply | 3P 380V 50/60Hz (Optional 3P 220V) | |||
| Total power | 83 kW | 80 kW | 70 kW | 64 kW |
| Startup power | 30 kW | 36 kW | 32 kW | 38 kW |
| Normal consumption | 11 kW | 11 kW | 12 kW | 10 kW |
| Warming time | Approx. 30 min | Approx. 30 min | Approx. 35 min | Approx. 35 min |
| Temp. range | Room temp. ~ 300℃ | |||
| Temp. control method | PID Closed-Loop Control + SSR Driving | |||
| Temp. precision | ±1℃ | |||
| PCB temp. deviation | ±1.5℃ | |||
| Data storage | Multi-recipe storage | |||
| Alarm | Extra-high / Extra-low temp. | |||
| Tower light | Yellow = Warming, Green = Normal, Red = Abnormal | |||
| Dimension (L×W×H) | 5225×1430×1530 mm | 6005×1430×1530 mm | 5225×1680×1530 mm | 6005×1680×1530 mm |
| Weight | Approx. 2615 kg | Approx. 2645 kg | Approx. 3050 kg | Approx. 3200 kg |
| Color | Computer Grey | |||
| Material | Galvanized sheet | |||
| Option | Dual-rail, rails 1.3/1.4 fixed, Max PCB 250×250 mm | |||
