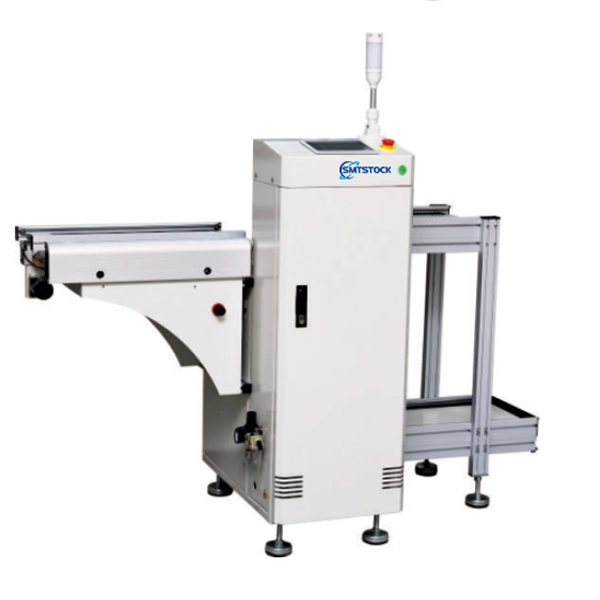

Features
• Strong, firm, and stable design.
• User-friendly soft-touch LED membrane control panel.
• Top & bottom pneumatic clamps to secure the magazine rack.
• No PCB breakage guarantee because of the special gas circuit design.
• Automatic fault code display function.
• Wear-resistant cable has a long service life.
• SMEMA compatible.
| Technical Parameters | |
|---|---|

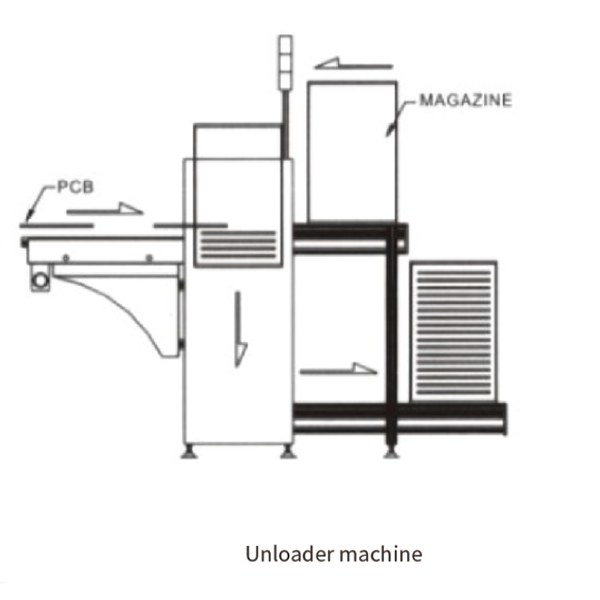

| Usage | This unit is used for unloading PCBs |
| Magazine Capacity | Upper 1, Lower 2 |
| Time Feed PCB | 6 seconds or specify |
| Magazine Replacement Time | 30 seconds or specify |
| Indexing Pitch | 10, 20, 30, 40 mm or specify |
| Power Supply | AC110V / 220V |
| Max Power | 300W |
| Air Pressure | 4–6 bar |
| Transport Height | 900±20 mm (or customized) |
| Transport Direction | Left to right or right to left |
Specifications
| Machine Name | Model | Dimension (LWH mm) | PCB Size (mm) | Magazine Size (LWH mm) | Weight (kg) |
|---|---|---|---|---|---|
| Unloader | UL-M-TN | 1730x765x1250 | 50x80-330x250 | 355x320x563 | 160 |
| Unloader | UL-L-TN | 2065x845x1250 | 50x80-445x330 | 460x400x563 | 220 |
| Unloader | UL-LL-TN | 2260x909x1250 | 50x80-530x390 | 535x460x563 | 180 |
| Unloader | UL-XL-TN | 2260x980x1250 | 50x80-530x460 | 535x5305×63 | 320 |
| Unloader | UL-XXL-TN | 2610x1230x1250 | 50x80-610x460 | 630x530x563 | 450 |
