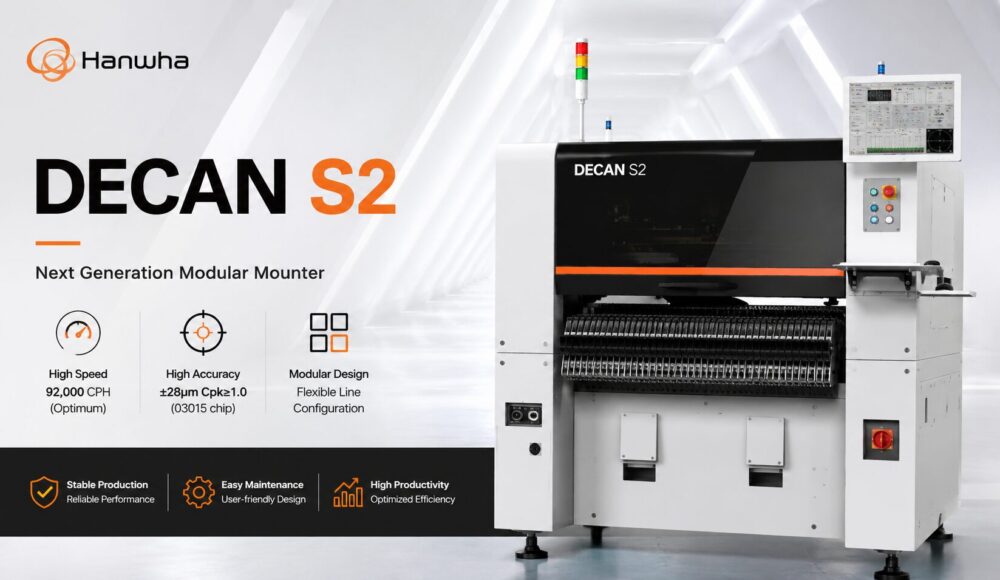

The Hanwha DECAN S2 is a high-speed SMT pick and place machine designed for efficient chip mounting in modern electronics manufacturing. As part of the DECAN Series, the DECAN S2 is positioned as an advanced chip shooter for production lines that require speed, stability, and flexible PCB handling.
For manufacturers building or upgrading an SMT production line, the DECAN S2 offers a strong balance of productivity and flexibility. It is suitable for a wide range of electronic assembly applications, from consumer electronics and LED products to industrial control boards, power modules, communication devices, and automotive electronics.
What Is the Hanwha DECAN S2?
The Hanwha DECAN S2 is an SMT chip mounter developed for high-speed component placement. It uses a dual gantry structure with 10 spindles per head, helping manufacturers increase placement output while maintaining reliable accuracy.
In SMT production, a chip shooter is often used for placing small and medium-sized components at high speed. The DECAN S2 fits this role well, especially for production environments that need fast placement of chip components, ICs, LEDs, connectors, and other common electronic parts.
Key Features of the Hanwha DECAN S2
High-Speed Placement Performance
One of the main advantages of the DECAN S2 is its high placement speed. Under optimum conditions defined by Hanwha, the DECAN S2 can reach up to 92,000 CPH. This makes it a suitable choice for production lines that require high throughput and shorter cycle times.
The machine is designed to reduce placement cycle time by recognizing picked components and correcting the placement angle while moving to the placement position. This helps improve efficiency in continuous SMT production.
Flying Vision System
The DECAN S2 uses a Flying Vision system for component recognition. Flying Vision helps inspect and recognize components while the head is moving, reducing waiting time and supporting faster placement operation.
This feature is especially important for manufacturers that need both speed and placement consistency. By combining high-speed movement with vision recognition, the DECAN S2 can support stable production across different board types and component requirements.
Wide Component Handling Capability
The DECAN S2 supports a component range from 03015 chips up to a maximum component size of 55 mm with a height of up to 15 mm. This allows the machine to handle many common SMT components used in electronics manufacturing.
Its wide part handling capability makes the DECAN S2 useful for various PCB assembly projects, including boards with small chip components, IC packages, LED components, connectors, and mixed component layouts.
Flexible PCB Transfer Options
The DECAN Series is designed with flexible PCB transfer systems to support different production environments. The DECAN S2 can handle standard PCB sizes from 50 x 40 mm to 510 x 460 mm, with optional configurations for larger boards up to 1,200 x 460 mm.
The machine also supports multiple conveyor configurations, helping production lines improve efficiency when handling different PCB sizes and production flows. For factories that frequently change products or board types, this flexibility can be valuable.
Production Traceability Support
Modern SMT production often requires traceability and process control. The DECAN S2 supports production history management features such as parts verification and lot tracking. These functions help reduce placement errors and improve manufacturing control.
For electronics manufacturers serving quality-sensitive industries, traceability is an important part of production management. It helps track materials, production history, and process data more effectively.
Hanwha DECAN S2 Specifications
| Item | Hanwha DECAN S2 Specification |
|---|---|
| Machine Type | Advanced Chip Shooter / SMT Pick and Place Machine |
| Number of Spindles | 2 Gantry x 10 Spindles/Head |
| Placement Speed | 92,000 CPH under optimum conditions |
| Vision System | Flying Vision |
| Placement Accuracy | +/-28 um Cpk >= 1.0 for 03015 chip; +/-25 um Cpk >= 1.0 for IC |
| Component Range | 03015 to max. 55 mm, H15 mm |
| PCB Size | 50 x 40 mm to 510 x 460 mm standard; optional up to 1,200 x 460 mm |
| Conveyor Configuration | Standard 1-2-1; optional configurations available |
| Feeder Capacity | 120 ea, 8 mm |
| Power | 3 phase AC 200/208/220/240/380/415 V +/-10%, 50/60 Hz |
| Power Consumption | Max. 5.0 kVA |
| Air Consumption | 50 Nl/min |
| Weight | Approx. 1,800 kg |
| External Dimensions | 1,430(L) x 1,740(D) x 1,485(H) mm |
These specifications make the DECAN S2 a strong option for SMT production lines that need high-speed placement with flexible component and PCB handling.
Applications of the DECAN S2 SMT Machine
The Hanwha DECAN S2 can be used in many electronics manufacturing applications. Its speed and component range make it suitable for both high-volume production and flexible product changeovers.
Common application areas include:
- Consumer electronics
- LED and lighting products
- Automotive electronics
- Industrial control boards
- Communication electronics
- Power supply boards
- Home appliance control boards
- General PCB assembly production
Because the DECAN S2 can place small chip components as well as larger components up to 55 mm, it can support a wide variety of board designs.
Why Choose the Hanwha DECAN S2 for SMT Production?
For manufacturers comparing SMT placement machines, the DECAN S2 offers several practical advantages.
First, its 92,000 CPH placement speed supports high-output production. This is important for factories that need to improve line efficiency and reduce production time.
Second, the Flying Vision system helps maintain recognition performance while supporting high-speed operation. This gives the machine a good balance between speed and production reliability.
Third, its flexible PCB handling capability allows it to work with different board sizes and conveyor configurations. This is useful for manufacturers that need to handle multiple product types on the same SMT line.
Finally, the DECAN S2 is part of the Hanwha SMT machine family, which is widely used in electronics manufacturing. For companies looking for new, used, or refurbished SMT equipment, Hanwha machines are often considered for their productivity, availability, and long-term production value.
Explore Hanwha SMT Machines from SMTSTOCK
If you are looking for Hanwha SMT machines for your production line, SMTSTOCK provides a range of Samsung/Hanwha SMT machine options, including chip mounters and pick and place equipment.
You can explore available models here: Hanwha SMT machines
Whether you are planning a complete SMT line, upgrading existing equipment, or sourcing a suitable Hanwha pick and place machine, choosing the right model depends on your PCB size, component range, production volume, and factory layout.
Is the DECAN S2 Right for Your SMT Line?
For factories that need a faster and more flexible SMT line, the DECAN S2 is worth serious consideration. It is not only about placement speed; the real value is how it helps a production line handle different PCB sizes, component types, and daily manufacturing changes with less interruption.
If you are comparing Hanwha placement machines or planning an SMT line upgrade, you can browse SMTSTOCK’s available Hanwha SMT machines and choose a model that matches your production volume, board size, and application requirements.
