For many EMS factories and electronics manufacturers, production flexibility is becoming more important than simply pursuing maximum placement speed. This is one reason why the Yamaha YSM20R remains a popular SMT pick and place machine in the used SMT equipment market.

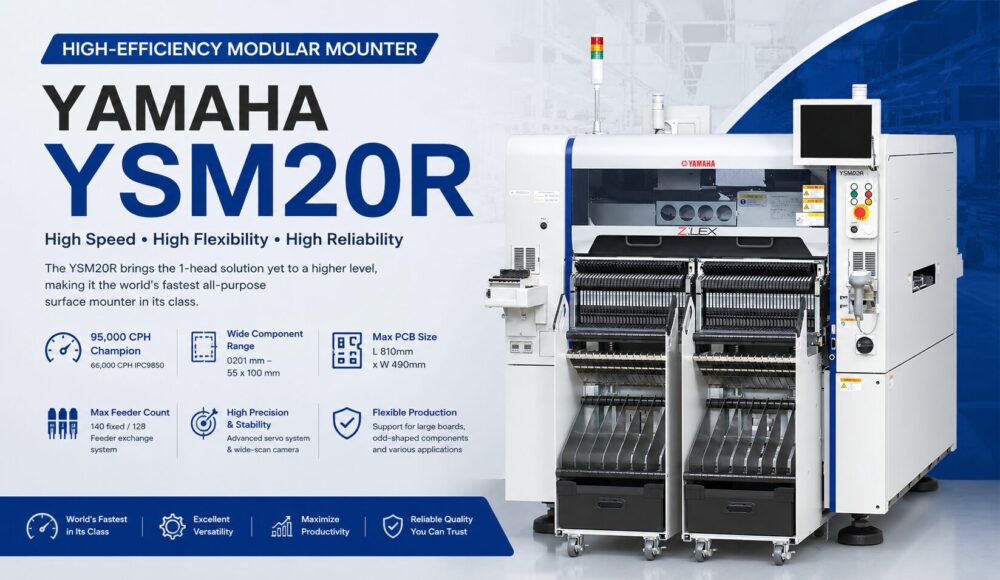

The Yamaha YSM20R is designed as a high-efficiency modular mounter capable of handling a wide range of production requirements, from high-speed chip mounting to larger and odd-shaped components. Even today, many factories continue using the YSM20R for automotive electronics, industrial control boards, LED products, communication equipment, and consumer electronics production.
High Placement Speed with Stable Performance
One of the biggest advantages of the YSM20R is its balance between speed and versatility.
According to Yamaha’s official specifications, the machine can achieve:
– Up to 95,000 CPH Champion speed
– 66,000 CPH under IPC9850 standard
This level of performance still makes the YSM20R competitive for many SMT production lines, especially for medium and high-volume PCB assembly.
Compared with some older generation Yamaha machines, the YSM20R offers improved recognition systems, faster servo control, and better overall production efficiency.
Wide Component Compatibility
The YSM20R supports a very wide component range, which is important for modern mixed-production SMT factories.
The machine supports:
– 0201 mm chip components
– Large components up to 55 × 100 mm
– Component height up to 28 mm (with FM head)
This flexibility allows the YSM20R to handle both high-speed chip placement and larger connectors or special-shaped components within the same production line.
The HM high-speed multi-purpose head and FM flexible multi-purpose head help reduce head replacement requirements and improve production flexibility.
Large PCB Support for Flexible Production
Another major advantage is the large PCB handling capability.
The Yamaha YSM20R supports PCB sizes up to:
– L810 × W490 mm (single lane)
The YSM20WR dual-lane version can support:
– Dual-lane production
– Large PCB configurations up to L810 × W662 mm
This makes the machine suitable for various SMT applications including LED boards, automotive electronics, industrial products, and communication equipment.
High Feeder Capacity Improves Production Efficiency
The YSM20R supports:
– Up to 140 fixed feeders
– 128 feeder exchange system
High feeder capacity is extremely important for reducing production changeover time, especially for EMS factories producing multiple PCB models.
The machine also supports Yamaha intelligent feeder systems including ZS feeders and non-stop feeder exchange systems, helping improve line utilization and reduce downtime.
Practical Functions for Daily SMT Production
The YSM20R includes many functions that are still highly practical for modern SMT production environments:
– Automatic nozzle cleaning station
– Side-view pickup inspection
– Automatic support pin change
– High-speed smart recognition
– Auto Loading Feeder (ALF)
– Non-stop tray replacement system
These features help improve machine stability, reduce operator workload, and maintain consistent production quality.
Why Many Factories Still Choose Used Yamaha YSM20R Machines
Compared with purchasing a brand-new SMT pick and place machine, many factories choose refurbished or used Yamaha YSM20R machines because of:
– Lower investment cost
– Stable long-term performance
– Mature Yamaha platform
– Easy spare parts support
– Good compatibility with Yamaha feeders and nozzles
For factories expanding production capacity or building cost-effective SMT lines, the YSM20R remains a practical and reliable solution.
SMTSTOCK Supply Used and Refurbished Yamaha YSM20R Machines
At SMTSTOCK, we supply used and refurbished Yamaha YSM20R SMT machines with machine inspection, maintenance, testing, and export packing support.
We can also provide:
– Yamaha feeders
– Yamaha nozzles
– Spare parts
– SMT line solutions
– Worldwide shipping support
If you are looking for a reliable used Yamaha YSM20R SMT machine, feel free to contact us for more information, machine photos, videos, and quotations. For many EMS factories and electronics manufacturers, production flexibility is becoming more important than simply pursuing maximum placement speed. This is one reason why the Yamaha YSM20R remains a popular SMT pick and place machine in the used SMT equipment market.
