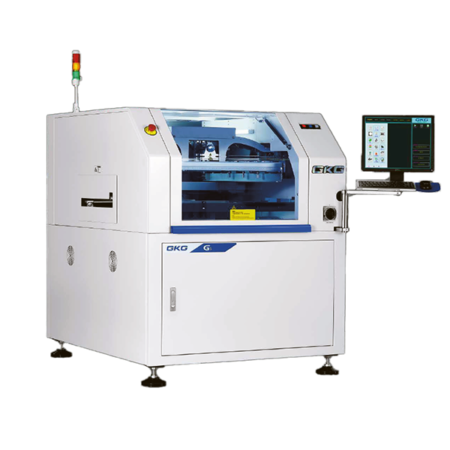

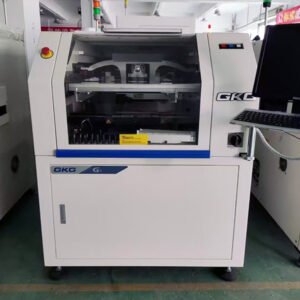

Features
-
High Precision Printing
Achieves repeat position accuracy of ±0.01mm and printing accuracy of ±0.025mm, ensuring consistent and reliable solder paste deposition. -
Flexible PCB Compatibility
Supports PCB sizes from 50×50mm up to 400×340mm, with thickness ranging from 0.4 to 6mm and warpage control under 1%. -
Smart Vision Alignment System
Advanced up/down optics with CCD camera and pattern matching enable fast and precise PCB alignment for every print cycle. -
Efficient Cleaning System
Reinforced vacuum, dry, and wet cleaning modes ensure stencil cleanliness, reducing downtime and improving print quality. -

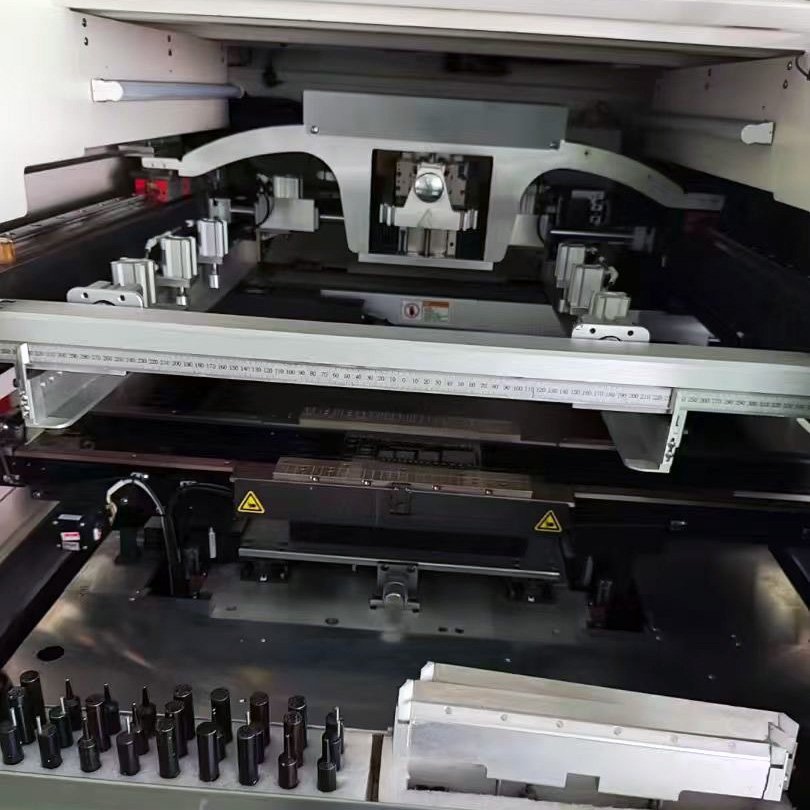

Automatic and Adaptive Operation
Features auto conveyor width adjustment, dual motorized print heads, programmable squeegee pressure/speed, and intuitive PC control system for streamlined operation.
Technical Parameters
| Item | GKG G5 |
| Screen Frame Min Size | 370×370mm |
| Screen Frame Max Size | 737×737mm |
| Screen Frame Thickness | 20~40mm |
| PCB Max Size | 400×340mm |
| PCB Min Size | 50×50mm |
| PCB Thickness | 0.4~6mm |
| PCB Warpage | <1% |
| Transport Height | 900±40mm |
| Transport Direction | L-R / R-L / L-L / R-R |
| Transport Speed | Up to 1500mm/s (Programmable) |
| Transport Method | One-stage conveyor rail |
| Conveyor Width Adjustment | Auto |
| Repeat Position Accuracy | ±0.01mm |
| Printing Accuracy | ±0.025mm |
| Cycle Time | <8 sec (excluding printing and cleaning) |
| Product Changeover Time | Old program: <3 mins / New program setup: <5 mins |
| Air Supply | 4~6 kgf/cm² |
| Power Supply | AC 220V ±10%, 50/60Hz, 2.5KW |
| Control Method | PC Control |
| Operating System | Windows XP / Win 7 |
| Machine Dimensions | 1140(L) × 1364(W) × 1404(H) mm |
| Machine Weight | Approx. 1000kg |
| I/O Interface | SMEMA |
| PCB Location | Method based on support system |
| Support System | Magnetic pin / Support block / Manual up-down table |
| Clamping System | Over-the-top clamping / Side clamping / Vacuum table |
| Print Head | Dual independent motorised heads |
| Squeegee Pressure | 0.5~10kg (Programmable) |
| Squeegee Speed | 6~200mm/s |
| Print Mode | Single or double squeegee |
| Squeegee Type | Rubber or steel (Angle 45° / 55° / 60°) |
| Cleaning System | Dry / Wet / Vacuum (Reinforced vacuum absorption) |
| CCD FOV | 10×8mm |
| Table Adjustment Range | X: ±3mm; Y: ±7mm; θ: ±2° |
| Vision System | Look Up/Down optics with CCD and pattern matching |
