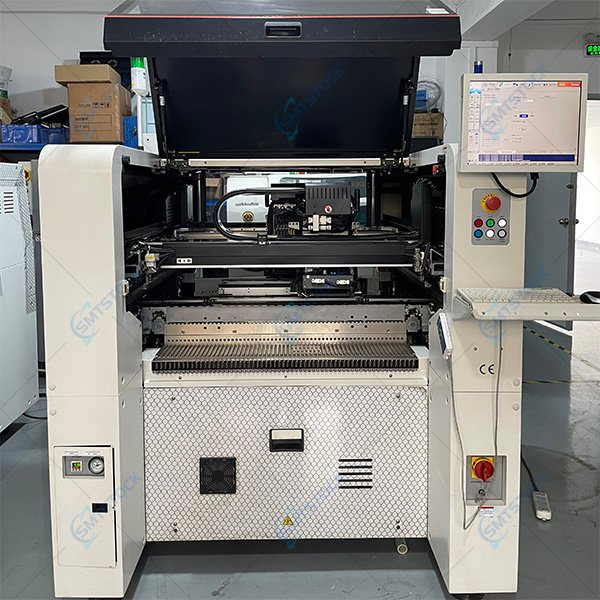

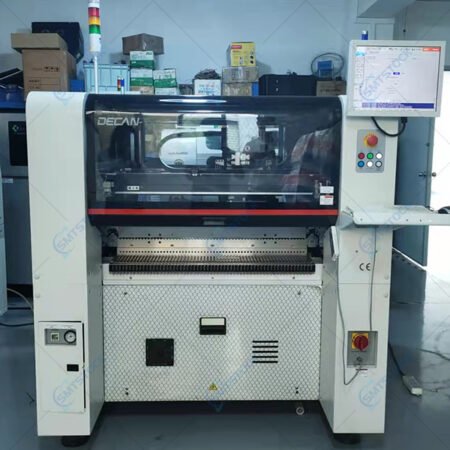

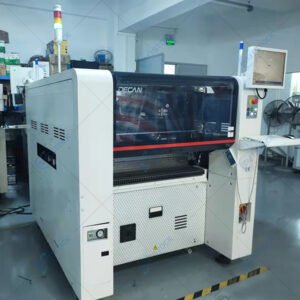

Specifications:
| DECAN S2 | DECAN F2 | DECAN L2 | |||
|---|---|---|---|---|---|
| Alignment | Fly Camera + Fix Camera (Option) | ||||
| The Number of Spindles | 10 Spindle x 2 Gantry | 10 Spindle x 2 Gantry | 6 Spindle x 2 Gantry | ||
| Placement Speed (Optimum) |
92,000 CPH (Optimum) | 80,000 CPH (Optimum) | 56,000 CPH (Optimum) | ||
| Placement Accuracy |
Chip | ±28 μm @ Cpk ≥ 1.0 (03015 Chip) |
±40 μm @ Cpk ≥ 1.0 | ||
| IC | ±30 μm @ Cpk ≥ 1.0 | ||||
| Component Range |
Fly Camera | 03015 ~ □12 mm | 0402 ~ □16 mm | 0402 ~ □21 mm | |
| Fix Camera | ~□42 mm (Standard) ~□55 mm (MFOV) ~ L75 mm Connector (MFOV) |
||||
| Max. Height | 10 mm (Fly) 15 mm (Fix) | 12 mm (Fly) 25 mm (Fix) | |||
| PCB Size (mm) | Min. | L50 x W40 | |||
| Max. | Single Lane | ~ L510 x W460 (Standard) ~ L1,200 x W460 (Option) ~ L1,500 x W460 (Option) |
|||
| Dual Lane | ~ L510 x W250 (Standard) ~ L510 x W280 (Option) ~ L1,200 x W250 (Option) |
~ L510 x W250 (Standard) ~ L1,200 x W250 (Option) |
|||
| PCB Thickness (mm) | 0.38 ~ 4.2 | ||||
| Feeder Capacity (8 mm standard) |
120 ea / 112 ea (Docking Cart) | ||||
| Utility | power | 3 Phase, AC 200 / 208 / 220 / 240 / 380 / 415V ±10% (50/60 Hz) Max. 5.0 kVA |
|||
| Air Consumption |
5.0 ~ 7.0 kgf/cm2 50 Nℓ/min |
||||
| Weight (kg) | Approx. 1,800 | ||||
| External Dimension (mm) | L1,430 x D1,740 x H1,485 | ||||
Features:
-
High Performance
- Productivity Improvement
- Increases the speed and accuracy for placing microchips (03015) Applies dual-lane PCB transfer system (productivity increases by 15% compared to a single lane)
-
High Reliability
- Adopts a Linear Motor to Realize Low Noise and Vibration
- Applies the twin servo control and linear motor to the Y-axis to realize low noise and vibration.
-
Flexible Production
- Supporting Modular Conveyor System for Various Production Environments
- Possible to produce various models depending on the Modular Conveyor System replaceable on site.
-
Easy Operation
- Reinforces the Convenience of Machine Software Operation
- The built-in optimization software allows a PCB program to be easily created and edited.
