Features
-
Speed-adjust torque for easy operation
-
Stable structure ensures reliable performance
-
Optional frame: rectangular welding frame or aluminum profile frame
-
Parallel and smooth width adjustment with lead screw
-
Adjustable conveyor speed and transport height
-
Minimized transmission clearance between conveyors
-
Various sizes available upon request
Technical parameters

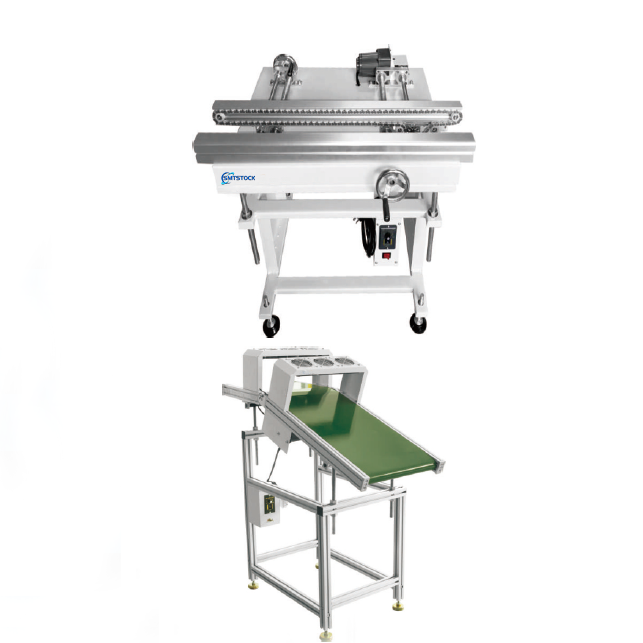

| Usage | This unit is used for the transmission of PCBs to the Wave Soldering machine inlet |
| Conveying Type | 35B Nylon chain or specify |
| Conveying Speed | 0.5–20 m/min or customer specified |
| Power Supply | AC 110V / 220V |
| Power | Max 100W |
| Transport Direction | From left to right or right to left |
Specifications
| Model Dimension (L*W*H mm) PCB Size (mm) Weight (kg) | |
| BF-L-BN 800*600*750 50*50-445*350 35 | |
| BF-XL-BN 800*700*750 50*50-530*460 45 | |
| UB-400W 1200*520*1400 50*50-445*350 35 | |
| UB-500W 1200*620*1400 50*50-530*460 45 |
