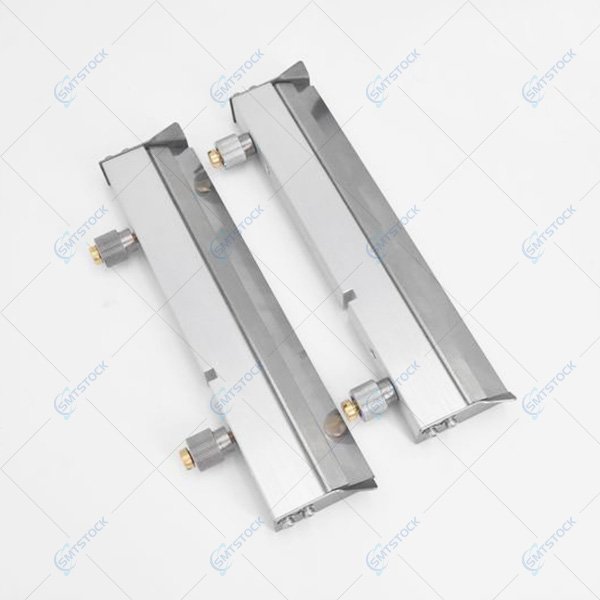

DEK ASM Metal Squeegee 200mm SQA301 03130413.
• High Quality: DEK ASM Original and copies are available.
• Complete in Specifications: Offering all the standard sizes DEK ASM Squeegees.
• In-Stock Availability: Ready for immediate shipment.
Would you also be interested in other DEK ASM Squeegees? Pls see the DEK ASM Squeegees list below and contact us.
| DEK ASM METAL CLAMPED SQUEEGEES | ||||||||||||
| 60Deg/15mm Overhang | 60Deg/6mm Overhang | 45Deg | ||||||||||
| Squeegee Length | Part NO. | Blade | New SAP P/N(U) | Old SAP P/N(O) | Part NO. | Blade | New SAP P/N(U) | Old SAP P/N(O) | Part NO. | Blade | New SAP P/N(U) | Old SAP P/N(O) |
| 170mm | SQA300 | 129924 | 03165892-01 | 03129438-01 | SQA310 | 129924 | 03165892-01 | 03129438-01 | SQA350 | 133601 | 03166893-01 | 03129469-01 |
| 200mm | SQA301 | 129925 | 03165893-01 | 03128547-01 | SQA311 | 129925 | 03165893-01 | 03128547-01 | SQA351 | 133602 | 03168405-01 | 03128551-01 |
| 250mm | SQA302 | 133584 | 03165894-01 | 03128546-01 | SQA312 | 133584 | 03165894-01 | 03128546-01 | SQA352 | 133603 | 03168555-01 | 03128672-01 |
| 300mm | SQA303 | 133585 | 03165895-01 | 03128549-01 | SQA313 | 133585 | 03165895-01 | 03128549-01 | SQA353 | 133604 | 03168791-01 | 03128677-01 |
| 350mm | SQA304 | 129926 | 03165896-01 | 03128498-01 | SQA314 | 129926 | 03165896-01 | 03128498-01 | SQA354 | 133605 | 03169303-01 | 03128660-01 |
| 400mm | SQA305 | 133586 | 03165897-01 | 03128540-01 | SQA315 | 133586 | 03165897-01 | 03128540-01 | SQA355 | 133606 | 03169341-01 | 03129456-01 |
| 440mm | SQA306 | 129927 | 03165898-01 | 03128548-01 | SQA316 | 129927 | 03165898-01 | 03128548-01 | SQA356 | 133607 | 03169513-01 | 03129470-01 |
| 483mm | SQA307 | 133587 | 03165899-01 | 03128603-01 | SQA317 | 133587 | 03165899-01 | 03128603-01 | SQA357 | 133608 | 03170087-01 | 03129471-01 |
| 510mm | SQA308 | 133588 | 03165900-01 | 03129454-01 | SQA318 | 133588 | 03165900-01 | 03129454-01 | SQA358 | 133609 | 03170351-01 | 03129473-01 |
| 535mm | SQA309 | 129928 | 03165901-01 | 03129439-01 | SQA319 | 129928 | 03165901-01 | 03129439-01 | SQA359 | 133610 | 03172721-01 | 03129457-01 |
| 580mm | SQA489 | 158387 | 03129614-01 | SQA490 | 158387 | 03129614-01 | SQA486 | 158386 | 03170351-01 | |||
| 610mm | SQA478 | 157642 | 03128692-01 | SQA479 | 157642 | 03128692-01 | SQA480 | 157648 | ||||
