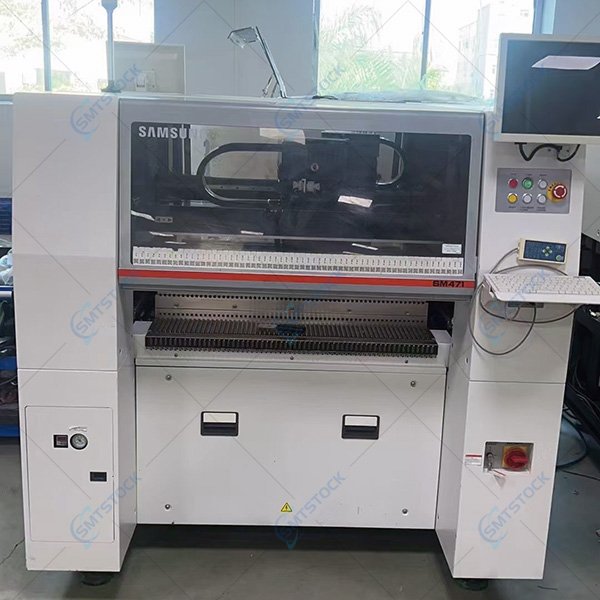

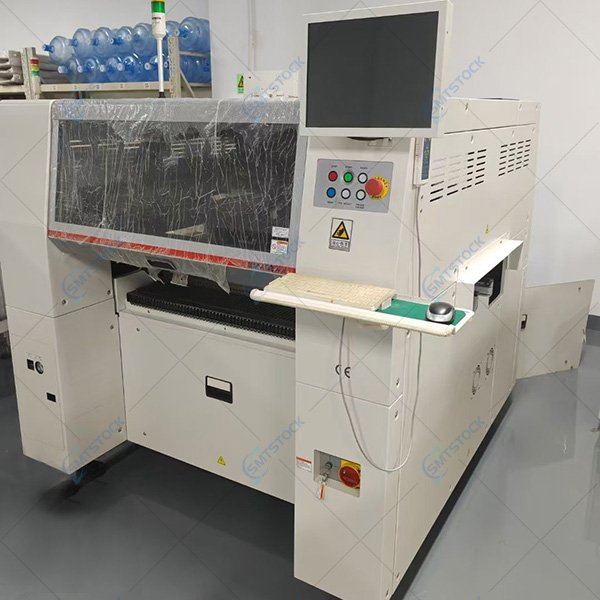

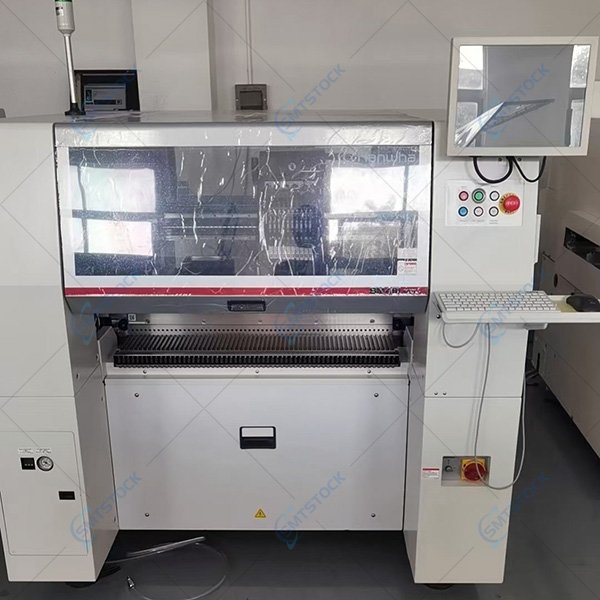

Specifications:
| SM471PLUS | SM481PLUS | SM482PLUS | SM485 | |||
|---|---|---|---|---|---|---|
| Alignment | Fly Camera | Fly Camera + Fix Camera (Option) | Fly Camera + Fix Camera | Fly Camera + Fix Camera | ||
| The Number of Spindles | 10 Spindes x 2 Gantry | 10 Spindle x 1 Gantry | 6 Spindle x 1 Gantry | 4+1 Spindes x 1 Gantry | ||
| Placement Speed | 78,000CPH (Optimum) | 40,000 CPH (Optimum) | 30,000 CPH (Optimum) | 22,000 CPH (Optimum) | ||
| Placement Accuracy | Chip | ±40μm@±3σ | ||||
| QFP | ±50μm@±3σ | ±30μm@±3σ | ||||
| Component Range | *Fly Camera | Chip IC, Connector BGA, CSP | 0402 ~ □14mm | 0402 ~ □16mm | 0603 ~ □22mm (*** 0402 ~ □14mm) | 0402 ~ □21 mm |
| *Fix Camera | C, Connector BGA, CSP | – | □16mm ~□42mm (Standard) □42mm ~□55mm (MFOV) L55mm ~ L75mm Connector (MFOV) | □16mm ~□42mm (Standard) □42mm ~□55mm (MFOV) L75mm ~ L150mm Connector (MFOV) | ||
| Max. Height | 12 mm | 10 mm (Fly) 15 mm (Fix) | 12 mm (Fly) 25 mm (Fix) | 15 mm (Fly) 26 mm (Fix) | ||
| PCB Size (mm) | Min. | L50 x W40 | ||||
| Max. | Single Lane | ~ L510 x W460 ~ L610 x W460 (Option) | ~ L460 x W400 ~ L510 x W460 (Option) ~ L610 x W510 (Option) ~ Max. L1,500 x W460 (Option) | ~ L460 x W400 ~ L510 x W460 (Option) ~ L610 x W510 (Option) ~ Max. L1,200 x W510 (Option) | ~ L460 x W400 ~ Max. L740 x W460 (Option) | |
| Dual Lane | ~ L460 x W250 ~ L610 x W250 (Option) | – | – | – | ||
| PCB Thickness | 0.38 ~ 4.2 | |||||
| Feeder Capacity (8mm standard) | 120ea/112ea (Docking Cart) | |||||
| Utility | power | AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase) | ||||
| Max. 5.0kVA | Max. 3.5kVA | Max. 3.5kVA | Max. 3.5kVA | |||
| Air Consumption | 0.5 ~ 0.7MPa (5.0 ~ 7.0kgf/cm2) | |||||
| 350Nℓ/min 50Nℓ/min (Vacuum Pump) | 160Nℓ/min 50Nℓ/min (Vacuum Pump) | 180Nℓ/min 50Nℓ/min (Vacuum Pump) | 180Nℓ/min 50Nℓ/min (Vacuum Pump) | |||
| Mass (kg) | Approx. 1,730 | Approx. 1,655 | Approx. 1,575 | Approx. 1,600 | ||
| External Dimension (mm) | L1,650 x D1,690 x H1,485 | L1,650 x D1,680 x H1,530 | L1,650 x D1,680 x H1,530 | L1,650 x D1,680 x H1,530 | ||
