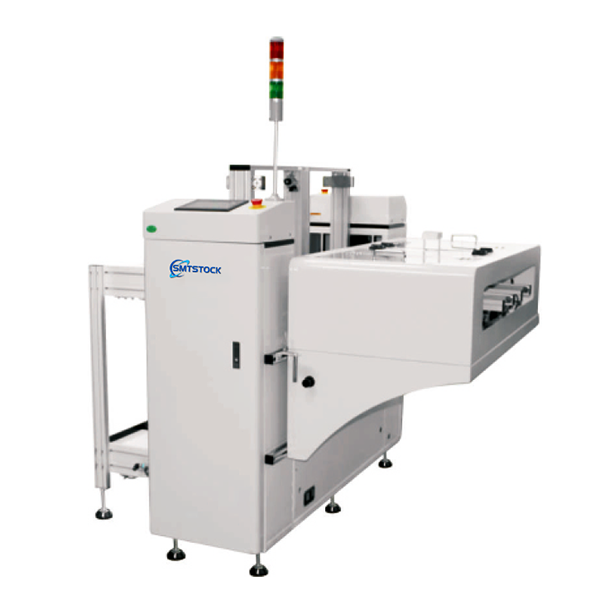

Features
• Strong, firm, and stable design.
• User-friendly “soft touch’ LED membrane, an ance control panel or touch screen can be selected. Top & bottom pneumatic clamps to secure the magazine rack.
• No PCB breakage guarantee because of the special gas circuit design.
• Automatic fault code display function.
• Wear-resistant cable has a long service life.
• SMEMA compatible.
Technical parameters

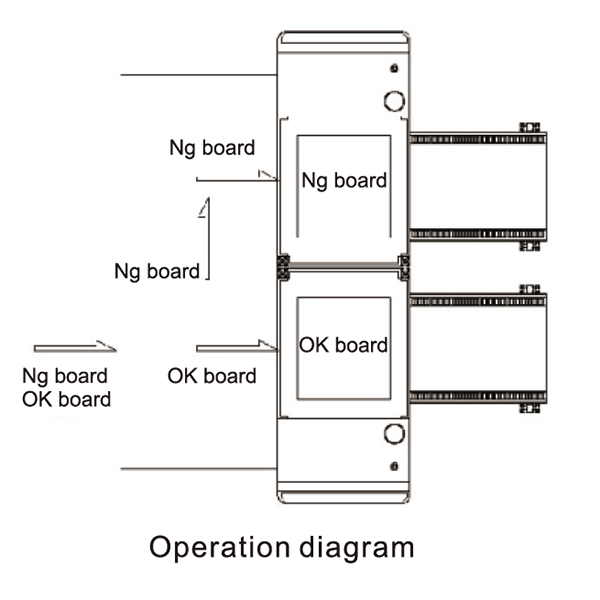

| Usage | This equipment is used to unload the PCB board (NG/OK) after the oven or AOI | ||
| No of Magazine | Upper conveyor: 1 magazine; Lower conveyor: 1 magazine | ||
| Magazine Replacement Time | Approx. 30 seconds or specify | ||
| Indexing Pitch | 10, 20, 30, 40 mm or specify | ||
| Power Supply | AC110V / 220V | ||
| Power | Max 300W | ||
| Air Pressure | 4–6 bar, 10 L/min max | ||
| Transport Height | 900 ± 20 mm (or customized) | ||
| Transport Direction | From left to right or right to left | ||
Specifications
| Model | Dimension (L*W*H mm) | PCB Size (mm) | Magazine Size (L*W*H mm) | Weight (kg) |
| NL-M-TN | 1800*1435*1250 | 50*80-330*250 | 355*320*563 | 310 |
| NLL-TN | 2065*1690*1250 | 50*80-445*330 | 460*400*563 | 340 |
| NLLL-TN | 2330*1810*1250 | 50*80-530*390 | 535*460*563 | 370 |
| NL-XL-TN | 2330*1950*1250 | 50*80-530*460 | 535*530*563 | 400 |
